Notifier FSP-951 Intelligent Addressable Photoelectric Smoke Detector
$66.96
Currently out of warehouse. Contact sales@plenasupply.com for lead time on incoming stock.
The Notifier FSP-951 is a commercial addressable smoke detector designed for compatible Notifier addressable fire alarm systems. It features an enhanced smoke sensing chamber engineered to detect smoke from a wide range of combustion sources while providing dependable performance and reduced nuisance alarms.
The detector incorporates programmable sensitivity, rotary decimal addressing, dual status LEDs, and continuous communication with the fire alarm control panel for alarm reporting and maintenance supervision. Its low-profile plug-in design simplifies installation and servicing. This product is intended exclusively for commercial fire alarm installations.
Product Functions
- Detects airborne smoke
- Reports alarm conditions to the fire alarm control panel
- Programmable detector sensitivity
- Continuous detector supervision
- Automatic maintenance monitoring
- Individual device identification
- Dual LED status indication
- Supports magnetic functional testing
Electrical & System Information
The FSP-951 operates on compatible Notifier FlashScan® addressable signaling line circuits (SLC) with an operating voltage range of 15–32 VDC. The detector communicates continuously with the fire alarm control panel, allowing programmable sensitivity, maintenance alerts, and precise device identification.

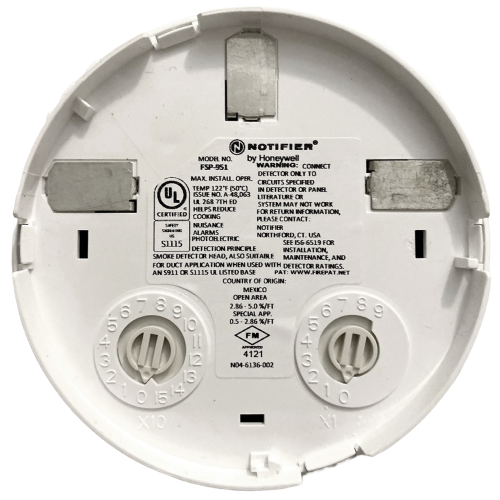

Rotary decimal address switches provide simple field addressing, while the plug-in detector head installs on compatible Notifier detector bases.
Features
- Commercial addressable smoke detector
- Enhanced smoke sensing chamber
- Programmable sensitivity
- Rotary decimal addressing
- Dual LEDs with 360° visibility
- Plug-in detector head
- Low-profile housing
- Magnetic test capability
- Automatic maintenance indication
- Remote LED annunciator support
Mounting & Design
The FSP-951 installs on compatible B300-6 Series, B501 Series, B210LP, B224RB, B224BI, and B200S detector bases. Its plug-in construction allows quick installation, inspection, cleaning, testing, and replacement without disturbing field wiring.
Protection & Applications
Suitable for:
- Office Buildings
- Schools
- Hospitals
- Hotels
- Retail Facilities
- Warehouses
- Government Buildings
- Industrial Facilities
- Commercial Properties
Compatibility
Compatible with:
- Notifier ONYX Fire Alarm Control Panels
- FlashScan Addressable Signaling Line Circuits
- B300-6 Series Detector Bases
- B501 Series Detector Bases
- B210LP Detector Base
- B224RB Relay Base
- B224BI Isolator Base
- B200S Sounder Base
- RA400Z Remote LED Annunciator
Always verify compatibility with the installed fire alarm control panel, detector base, firmware version, and project requirements before installation.
Technical Specifications
Manufacturer: Notifier
Parent Company: Honeywell
Model: FSP-951
Product Type: Addressable Smoke Detector
Detection Method: Photoelectric Smoke Sensing
Operating Voltage: 15–32 VDC Peak
Typical Standby Current: 200 µA @ 24 VDC
Maximum Operating Current: 4.5 mA @ 24 VDC
Sensitivity: 0.5%–4.0% Obscuration per Foot (UL Applications)
Addressing: Rotary Decimal Switches
Status Indicators: Dual LEDs
Operating Temperature: 32°F to 122°F (0°C to 50°C)
Operating Humidity: 10%–93% RH Non-Condensing
Air Velocity Rating: 0–4,000 ft/min
Mounting: Compatible Notifier Detector Base Required
Housing Color: White
Application: Indoor Commercial Fire Alarm Systems
Listings: UL/ULC Listed, FM Approved, and CSFM Listed (application dependent).
