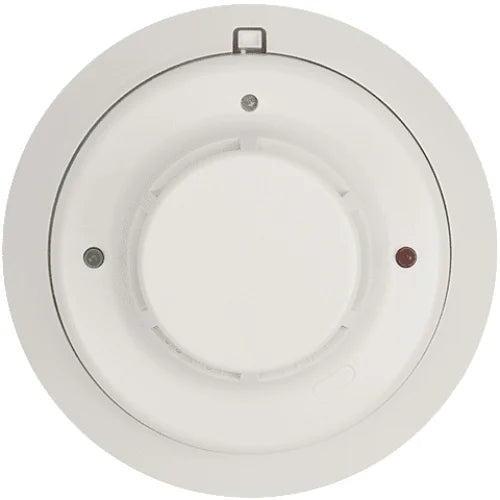

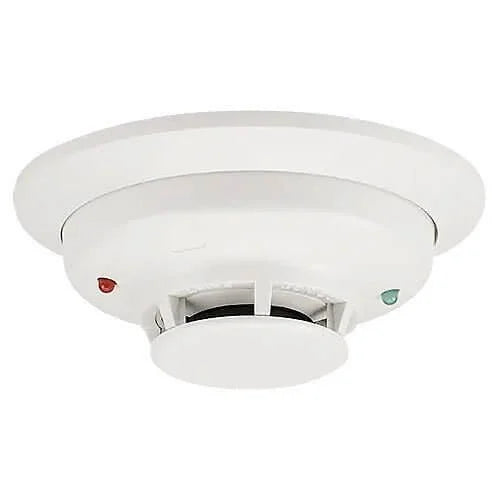

SYSTEM SENSOR 4W-B Photoelectric Smoke Detector
$55.95
Skip to product information
SYSTEM SENSOR 4W-B Photoelectric Smoke Detector
$55.95
Currently out of warehouse. Contact sales@plenasupply.com for lead time on incoming stock.
The System Sensor 4W-B is a 4-wire photoelectric smoke detector for conventional fire alarm circuits. Measuring 5.3 inches in diameter, this i3 series detector provides drift compensation and smoothing algorithms to minimize nuisance alarms in commercial environments.
Key Features
- 4-wire conventional photoelectric detector
- i3 series drift compensation and smoothing
- Stop-Drop N Lock plug-in detector head design
- 0.5 A @ 30V AC/DC alarm contact rating
- 2.5%/ft nominal sensitivity
Technical Specifications
- Diameter: 5.3 inches
- Height: 2.0 inches
- Type: Photoelectric smoke detector, 4-wire
- Operating Temperature: 32°F-120°F (0°C-49°C)
- Humidity: 0 to 95% RH non-condensing
- Sensitivity: 2.5%/ft nominal
