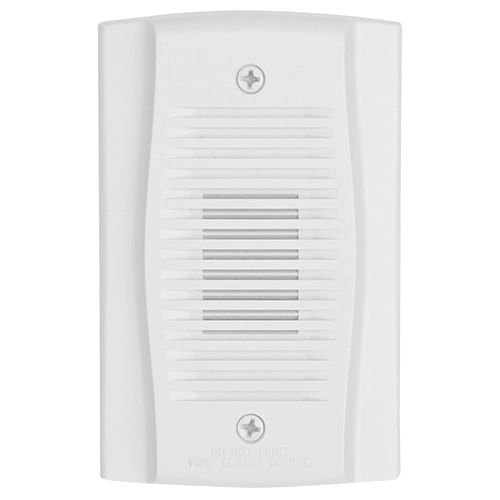

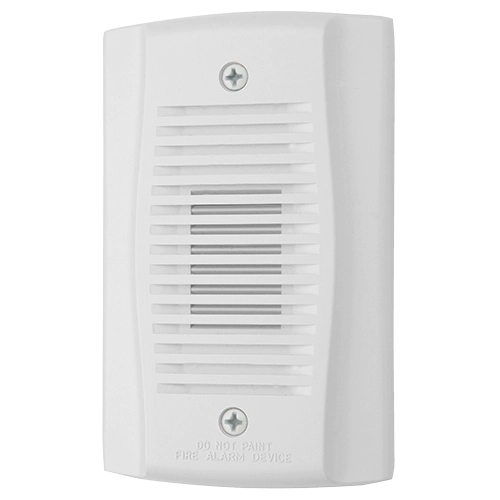

System Sensor MHW Mini-Horn, White

System Sensor MHW

A mini-horns operate at 12 and 24 volts. Are ideal for hotel, motel, or residential fire system applications. Where a smaller notification device is desired. The mini-horns offer high and low-volume settings. And temporal or non-temporal tones. The horns can be mounted to single gang back boxes for aesthetically sensitive applications. Synchronization is provided when using the MDL module.

Mini-horns shall be a Model MHR or MHW capable of operating at nominal 12 or 24VDC. And shall mount to a deep single gang back box. The mini-horn shall be listed to Underwriter’s Laboratories Standard UL464 for fire protective signaling systems. Mini-horns shall operate between 32 and 120 degrees Fahrenheit from a regulated DC. Or full-wave rectified unfiltered power supply. When used with the Sync Circuit™ Module, 12-volt rated notification appliance circuit outputs. Shall operate between nine and 17.5 volts; 24-volt rated notification appliance circuit outputs. Shall operate between 17 and 33 volts.

System Sensor MHW

A mini-horn can operate between 32 and 120 degrees Fahrenheit from a regulated DC or full-wave rectified unfiltered power supply. They come listed to Underwriter’s Laboratories Standard UL 464 for fire protective signaling systems.

Features / Specifications

12 and 24V operation

High and low volume settings

Temporal and non-temporal tones

Mounts to single gang back box

Compatible with MDL sync module

Mechanically and electrically compatible with PA400 series Mini-Alert™ sounders
